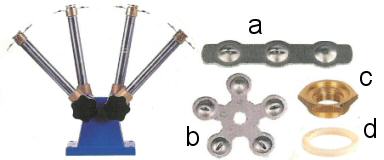

Blue spraying boom

The 4 and 6 nozzles blue spraying boom are utilized in the treatment of orchards and vineyards.
The base is in plasticized aluminium and brackets are in stainless steel.
The standard version is supplied with 3 position  stainless steel plates Ø 1.2 , but the version with star plate or the version with ceramic round nozzle or fan nozzle are available too.
code nozzles description €  - code description

059.1654 4 4 nozzle blue spraying boom with stainless steel straight plate a

059.165403

3 positions stainless steel plate for boom
059.1656 6 6 nozzle blue spraying boom with stainless steel straight plate b

059.165405

5 positions star plate for boom
059.1658 4 4 nozzle blue spraying boom with stainless steel star plate c 059.165409 Plate-locking brass head
059.1660 6 6 nozzleblue spraying boom with stainless steel star plate d 059.165407 23x18x3 PVC gasket
059.1662 4 4 nozzle blue spraying boom with 1.5 ceramic nozzle - 059.1654A Complete bracket for sky-blue boom
059.1664 6 6 nozzle blue spraying boom with 1.5 ceramic nozzle - 055.1310 Ø70x14m handwheel for sky-blue boom
059.1666 4 4 nozzle blue spraying boom with 1.2 Widia fan nozzle - 059.1654D Aluminium base for sky-blue boom
059.1668 6 4 nozzle blue spraying boom with 1.2 Widia fan nozzle - 059.1654B Brackets holder brass hinge for sky-blue boom

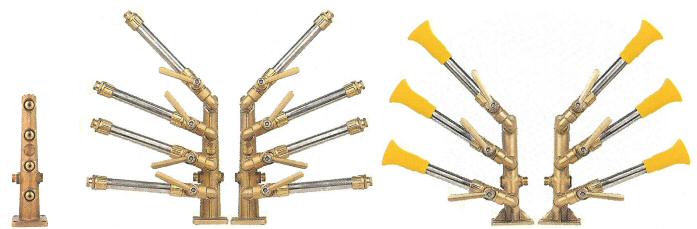

Spraying column

The 6 and 8 nozzles spraying column are utilized in the treatment of orchards and vineyards.
They are constituted by a pair of brass supports with 6 or 8 long cyclone nozzles art.053.5602 or short cyclone nozzles art. 053.5601 are mounted.
The standard version is supplied with Ø 1.5 mm ceramic round nozzle but the version Widia fan nozzle are available too.   PLEASE SPECIFY ON YOUR ORDER THE NOZZLE TYPE REQUIRED

code nozzles description €  code description

059.1606 6 Columns with 6 long cyclone nozzles

059.1502

Single column with 3 holes and plugs
059.1608 8 Columns with 8 long cyclone nozzles

059.1506

Single column with 4 holes and plugs
059.1616 6 Columns with 6 short cyclone nozzles 0591502A Pair of column with 3 holes and spherical hinges
059.1618 8 Columns with 8 short cyclone nozzles 0591506A Pair of column with 4 holes and spherical hinges
059.1626 6 Columns with 6 long cyclone turbo nozzles 047.3302 Brass plug 1/2" Male threaded for column
059.1628 8 Columns with 8 long cyclone turbo nozzles 047.3303 Brass plug 3/8" Male threaded for column
059.1606B 6 Columns with 6 cyclone nozzles and 1.2 fan nozzle 047.3402  M/M 1/2"x1/2" brass nipple
