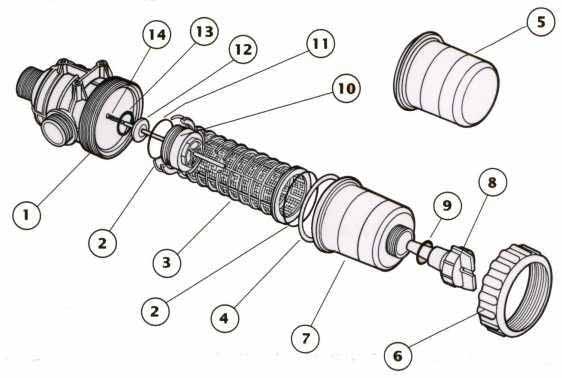

PART. |
CODE |
Description |
Price |
|||
| 1 | 045.0302.01 |
120-160 filter body - 1 1/4" thread |
||||
| 1 | 045.0402.01 |
120-160 filter body - 1 1/2" thread |
||||
| 2 | 045.0502.02 |
71.1 x 2.6 EPDM O ring |
||||
| 3 | 045.0502.03 |
White cartridge (32 mesh) for the 160 filter |
||||
| 3 | 045.0502.03A |
Blue cartridge (50 mesh) for the 160 filter |
||||
| 3 | 045.0502.03B |
Grey cartridge (80 mesh) for the 160 filter |
||||
| 4 | 045.0502.04 |
94.6 x 5.3 O ring |
||||
| 5 | 045.0502.05 |
Cap for the 160 closed filter |
||||
| 6 | 045.0502.06 |
Lock ring nut for the 160 filter |
||||
|
|
|
|
||||
| 7 | 045.0502.07 |
Cap for the 160 filter with valve |
||||
| 8 | 045.0502.08 |
Plug for the 160 filter with valve |
||||
| 9 | 045.0502.09 |
31.0 x 2.5 O ring in Viton |
||||
| 10 | 045.0502.10 |
Valve body for the 160 filter |
||||
| 11 | 045.0502.11 |
56.8 x 2.6 O ring |
||||
| 12 | 045.0502.12 |
Valve shutter for the 160 filter |
||||
| 13 | 045.0502.13 |
29.7 x 3.5 O ring in Viton |
||||
| 14 | 045.0502.14 |
Spring valve for the 160 filter |
||||
|
||||||
